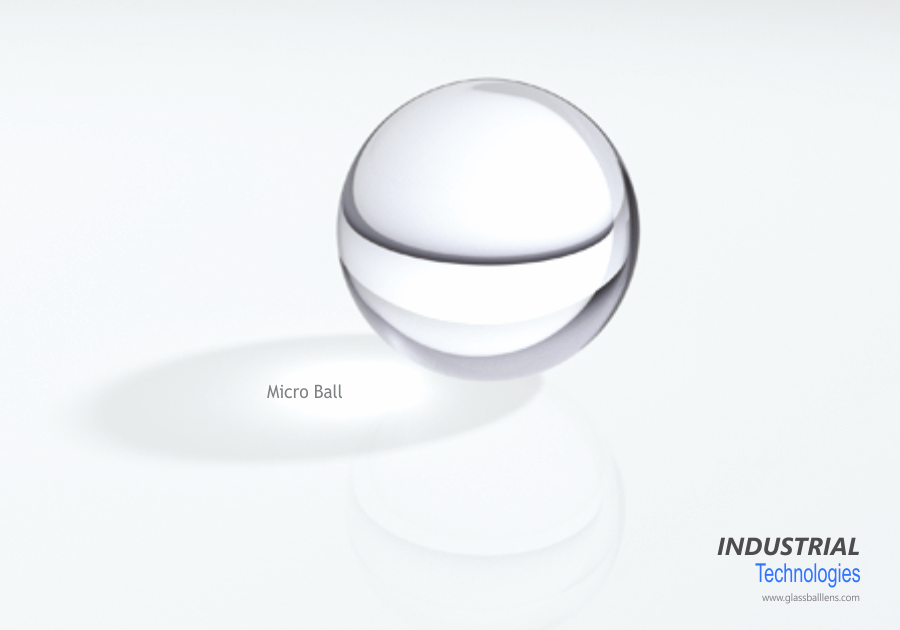

Industrial Technologies made Micro Balls from a wide variety of Optical glasses with refractive index ranging from 1.50 to 2.10.

We Manufacture Micro Ball range in diameter from 0.40mm to 8.0mm.

They can achieve a very high level of surface finish depending on the application of the product. Our Micro Ball can achieve a surface finish of Ra = 1.2nm.

In terms of visual appearance, Our Micro Ball can have a surface finish of No Scratch/Dig at 20x Magnification level (depending on the diameter of the Micro Ball).

The optical glasses used for making these Micro Ball are purchased from various renowned optical glass material makers like Ohara, Sumita, Schott, etc. which have a strict control on the nd and vd value of the glasses.

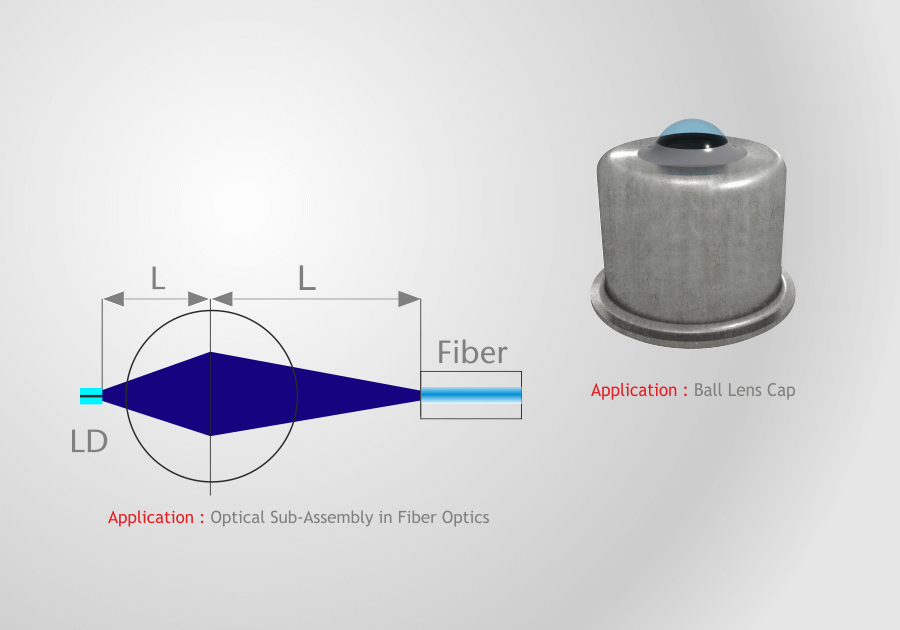

Micro Balls are used to improve signal coupling between Emitters, Fibres, Transmitters, Receivers and Detectors depending on the application.

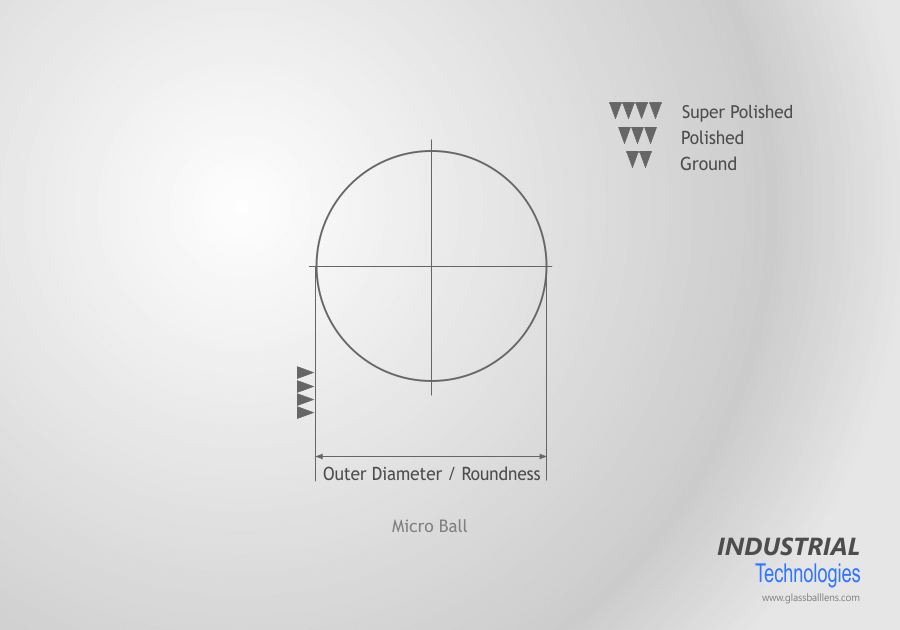

Standard Specification of our Micro Balls:

  • Tolerance on Micro Ball Diameter

    +/- 0.001mm

  • Micro Ball Surface Finish in Ra

    1.2 nm

  • Micro Ball Roundness

    < 0.001mm

  • No Scratch dig on Micro Ball

    at 20X magnification

  • Micro Ball Cleaning

    Class 100 clean room

  • Micro Ball Packing

    in Waffle trays or Glass bottles

  • Micro Ball is checked

    100% under microscope before Delivery.

  • All Micro Balls are cleaned and packed

    in Class 100 clean room area.
