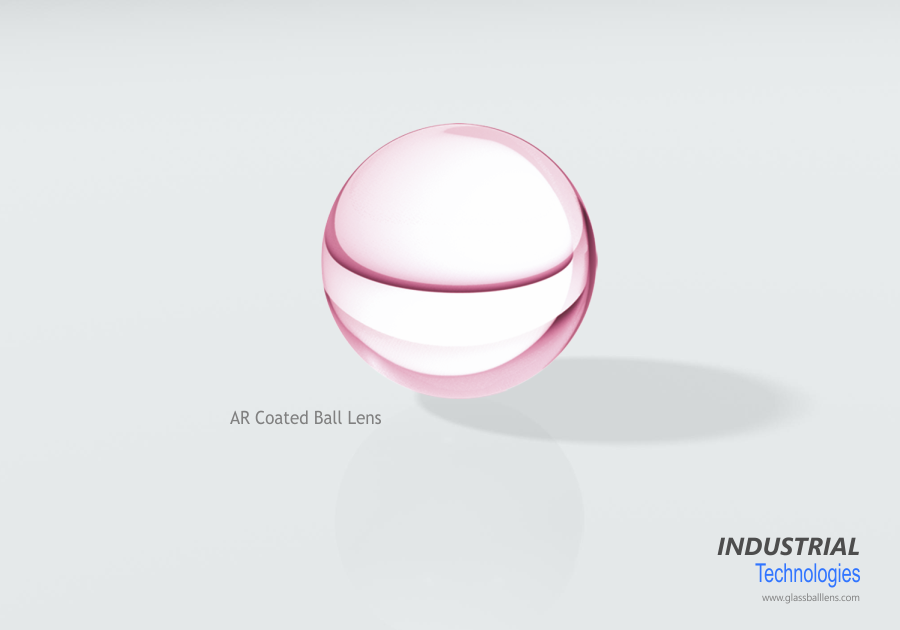

We provide AR coated ball lens in diameters ranging from 0.30mm to 8.0mm in a wide variety of materials with a refractive index ranging from 1.51 to 2.18. The Anti-Reflection (AR) coating is done uniformly all over the surface of the ball lenses without any parting line.

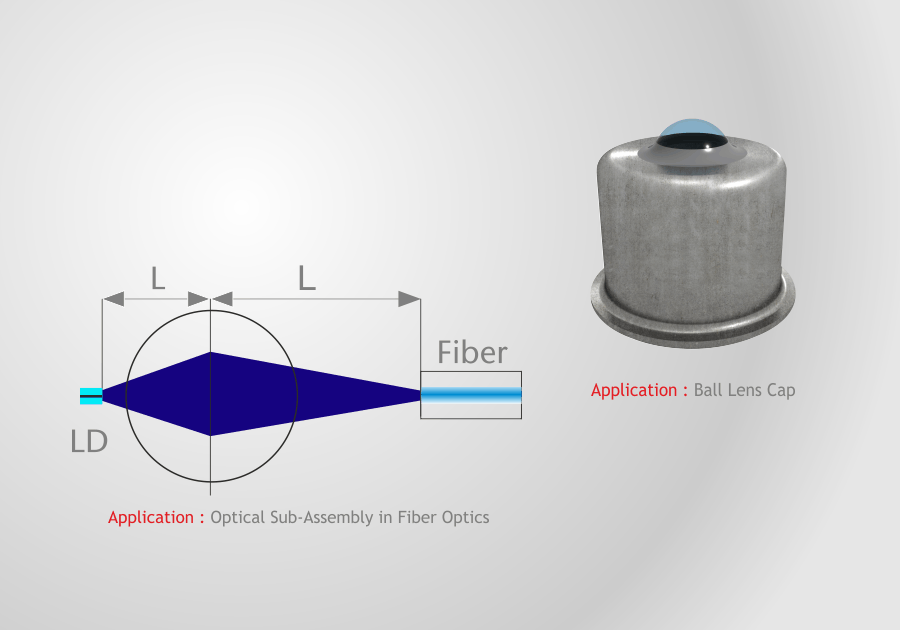

AR coated ball lens reduces reflection significantly hence it is an ideal choice for medical or telecommunication device applications like Fiber to fiber coupling, diode to fiber coupling, fiber to detector coupling, diode laser collimation, fiber collimation etc.
Antireflective or anti-reflection (AR) coating is one type of optical coating applied to the surface of ball lenses. Once the AR Coating applied to the ball lens, the light transmission ratio highly increased for those AR coated ball lens. This being achieved because the AR coating on the ball lens reduces the reflection.
Our AR coated ball lenses are precisely & uniformly coated all over the surface. Moreover, we do also provide a multilayer anti-reflection coating as per customer's requirements.
For Single Wavelength Coating, Transmission of T>99.5% can be achieved.
For Dual Wavelength Coating, Transmission of T>99% can be achieved.
We manufactured AR coated ball lenses from a wide variety of materials which are visibly good in transmission, like Sapphire, Spinel, Cubic Zirconia, Quartz/Fused Silica or various optical glasses which are sourced from Schott, Ohara, Sumita, etc.
Our high quality & precision AR coated ball lenses are priced highly competitive in the market. We do supply in bulk quantity in leading markets like USA, UK, Europe, Taiwan, Japan, China, Germany.
Industrial technologies also can be involved at your R&D stage and get prepared AR coated ball lenses prototypes with different specifications for your project and manufactured in mass once the final result achieved. Our decade's long vast & rich experience in ball lens manufacturing is very helpful to our customers in swiftly achieving their desire result, this we are often appreciated for and it gives us immense satisfaction.
All AR coated ball lens products are cleaned and packed in a Class 100 cleanroom area.

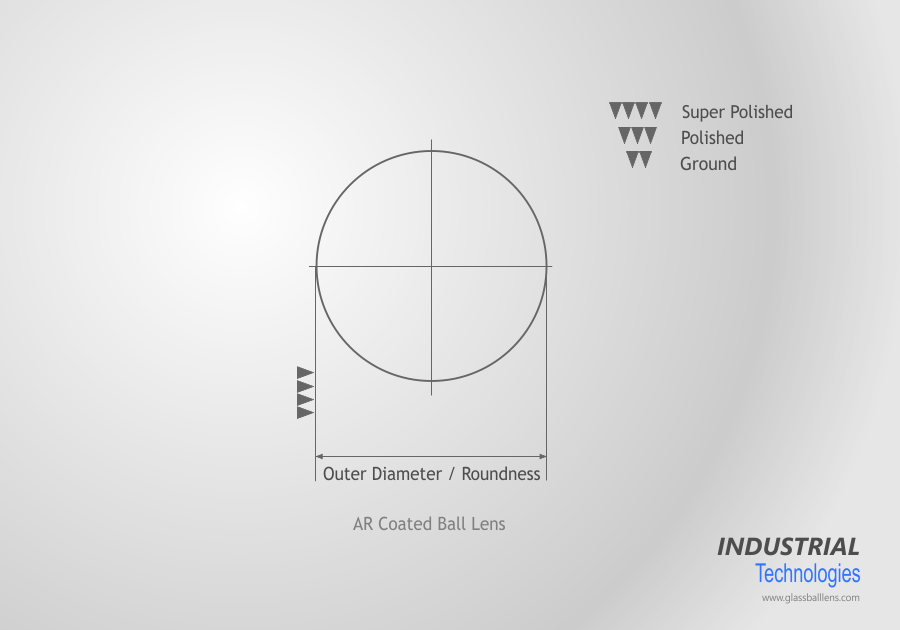

Standard Specification of our lenses:
Looking for Ball Lens? Submit your requirements get a free Quote
