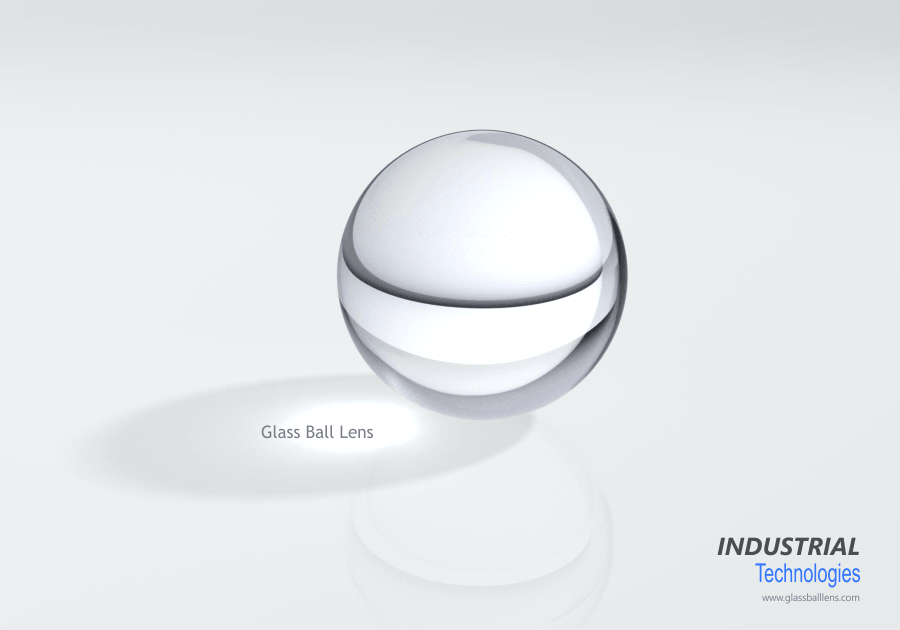

Quartz Ball Lens

You are here:

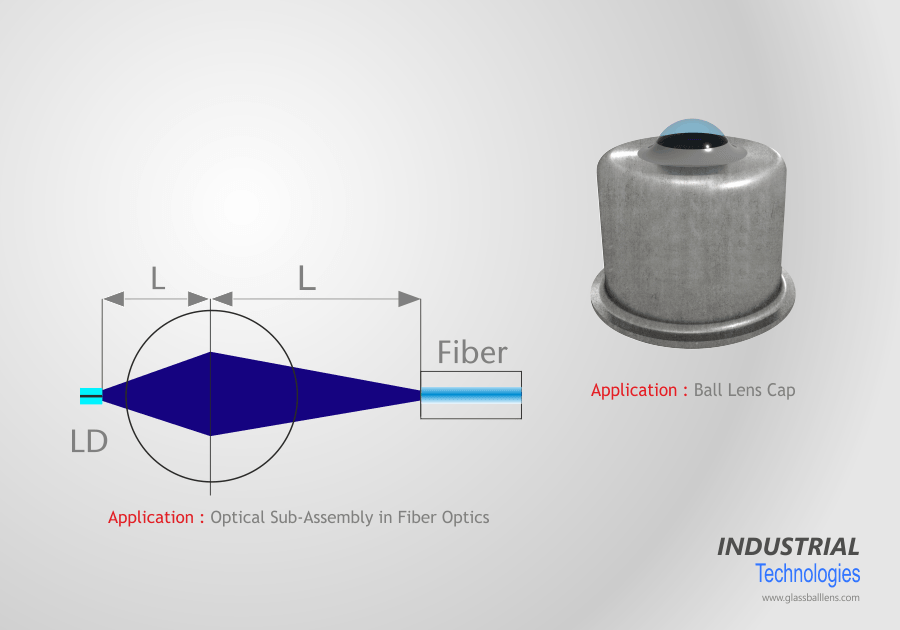

Quartz ball lens with good UV and IR transmission is widely used for focusing and coupling light into and out of the fibre.

The quartz ball lens has high transmission in between 185nm up to 2000+nm, Which makes it very interesting to be used for optical telecom products.

In terms of visual appearance, a quartz ball lens can have a surface finish of No Scratch/Dig at 20x Magnification level (depending on the diameter of the ball lens).

Our raw material is produced by one of the oldest and most reliable suppliers in the Swiss Industry. Each and every quartz ball lens is checked 100% for Size, Accuracy, Polish level and Cleaning before delivery.

All quartz ball lens products are cleaned and packed in a Class 100 cleanroom area.

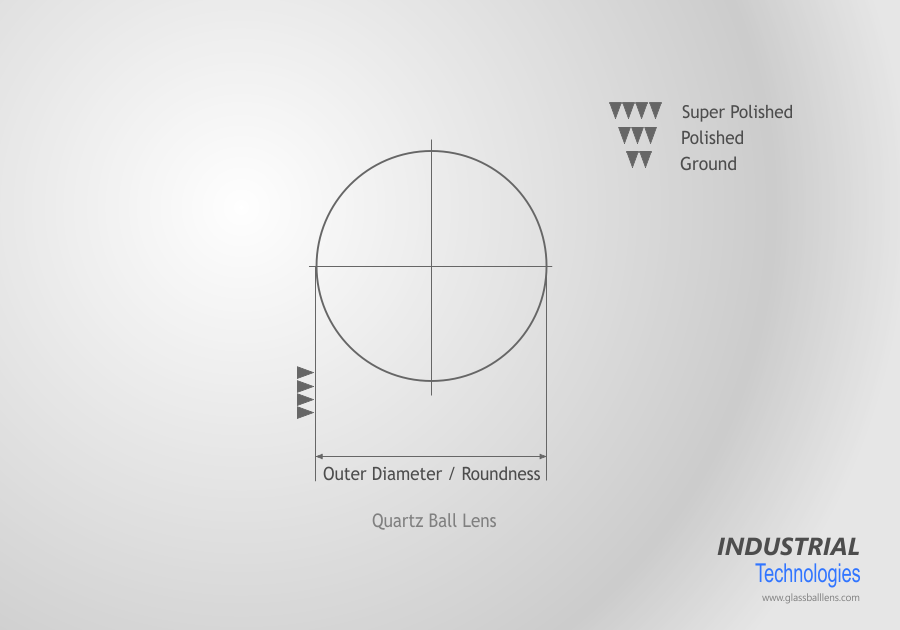

Standard Specification of our lenses:

  • Tolerance on Diameter

    +/- 0.001mm

  • Surface Finish in Ra

    1.2 nm

  • Roundness

    < 0.001mm

  • No Scratch dig

    at 20X magnification

  • Cleaning

    Class 100 clean room

  • Packing

    in Waffle trays or Glass bottles

  • Each Ball Lens is checked

    100% under microscope before Delivery.

  • All Ball Lenses are cleaned and packed

    in Class 100 clean room area.
